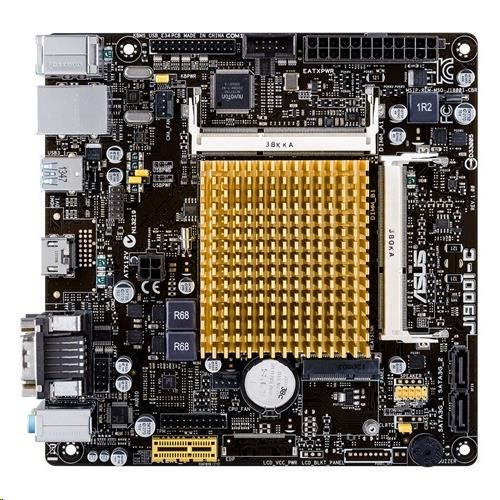

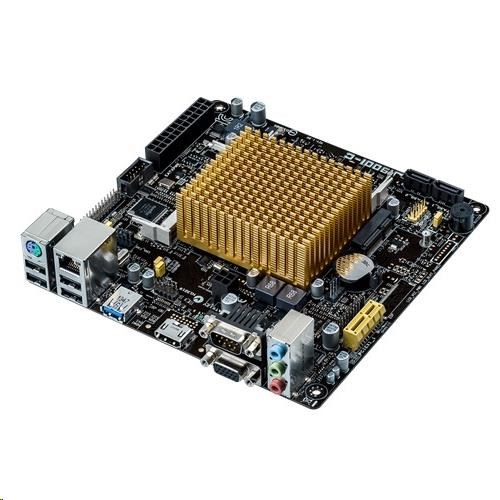

ASUS MB J1900I-C, Intel J1900, 2xSO-SIMM DDR3L, 1xHDMI, 1xVGA, mini-ITX

Formát základní desky:Mini-ITX; Chipset:Intel; Technologie paměti RAM:SODIMM DDR3; Počet paměťových slotů:2; M.2 slot...

Kód:
133600
P/N:
90MB0JH0-M0EAYM
Záruka:
36 měsíců
Výrobce:
ASUS Taiwan
Měrná jednotka:
Ks

Dostupnost: Na objednávku

Sklad Praha
Na objednávku
Sklad Brno
Na objednávku
Sklad Plzeň
Na objednávku
Celní sklad (24hod)
Na objednávku

Cena bez DPH: 1 674 Kč

Cena s DPH: 2 026 Kč

Koncová cena bez DPH:
1 674 Kč
Koncová cena s DPH:
2 026 Kč
Recyklační poplatek:
2 Kč
Autorský poplatek:
0 Kč

Množství:

Porovnat produkt

J1900I-C

Compact and great value Intel Celeron J1900 SoC CPU board with HDMI and USB 3.0

New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
Network iControl: Real-time network bandwidth management
CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
AI Suite 3: One-stop access to innovative ASUS features

TECHNICAL SPECIFICATIONS

CPU	Intel Celeron quad-core J1900 Processors
Memory	2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor Multi-VGA output support : HDMI/RGB ports - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz - Supports RGB with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 512 MB Supports DirectX 11
Expansion Slots	1 x PCIe 2.0 x1 1 x mini-PCIe *2
Storage	Built-in Controller: 2 x SATA 3Gb/s port(s), dark brown Supports Intel Smart Connect Technology
LAN	Realtek RTL8111G, 1 x Gigabit LAN Controller(s)
Audio	Realtek ALC887-VD 8-Channel High Definition Audio CODEC *1 - Supports: Jack-detection, Front Panel Jack-retasking
USB Ports	Built-in Controller: 1 x USB 3.1 Gen 1 port(s) (1 at back panel, blue)
USB Ports	Built-in Controller: 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Software Features	ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution: - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors
Operating System Support	Windows 8.1 Windows 8 Windows 7 Please update your BIOS and drivers to the latest version to support Windows 7

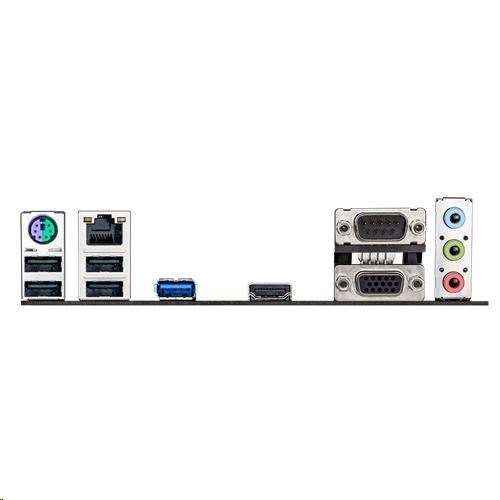

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 1 4 x USB 2.0 1 x COM port(s) 3 x Audio jack(s)
Internal I/O Ports	1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Buzzer
Accessories	User's manual I/O Shield 2 x SATA 3Gb/s cable(s)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc	Drivers ASUS Utilities EZ Update Anti-virus software (OEM version)
Form Factor	Mini ITX Form Factor 6.7 x 6.7 inch (17 x 17 cm)
Note	1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output. 2:This socket does not support USB Bluetooth signals. (The PCI Express x1 slots conform to PCI Express 2.0 standard) *3:Please update your BIOS and drivers to the latest version to support Windows 7.
