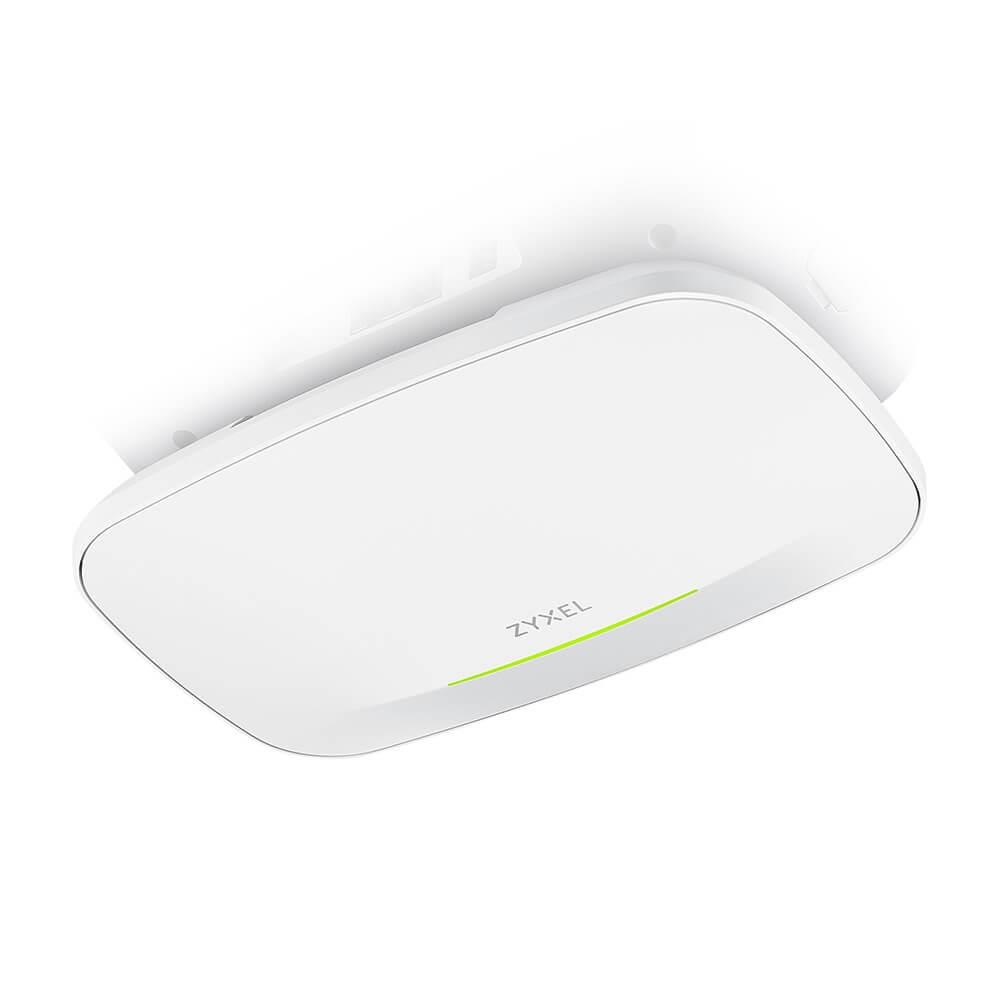

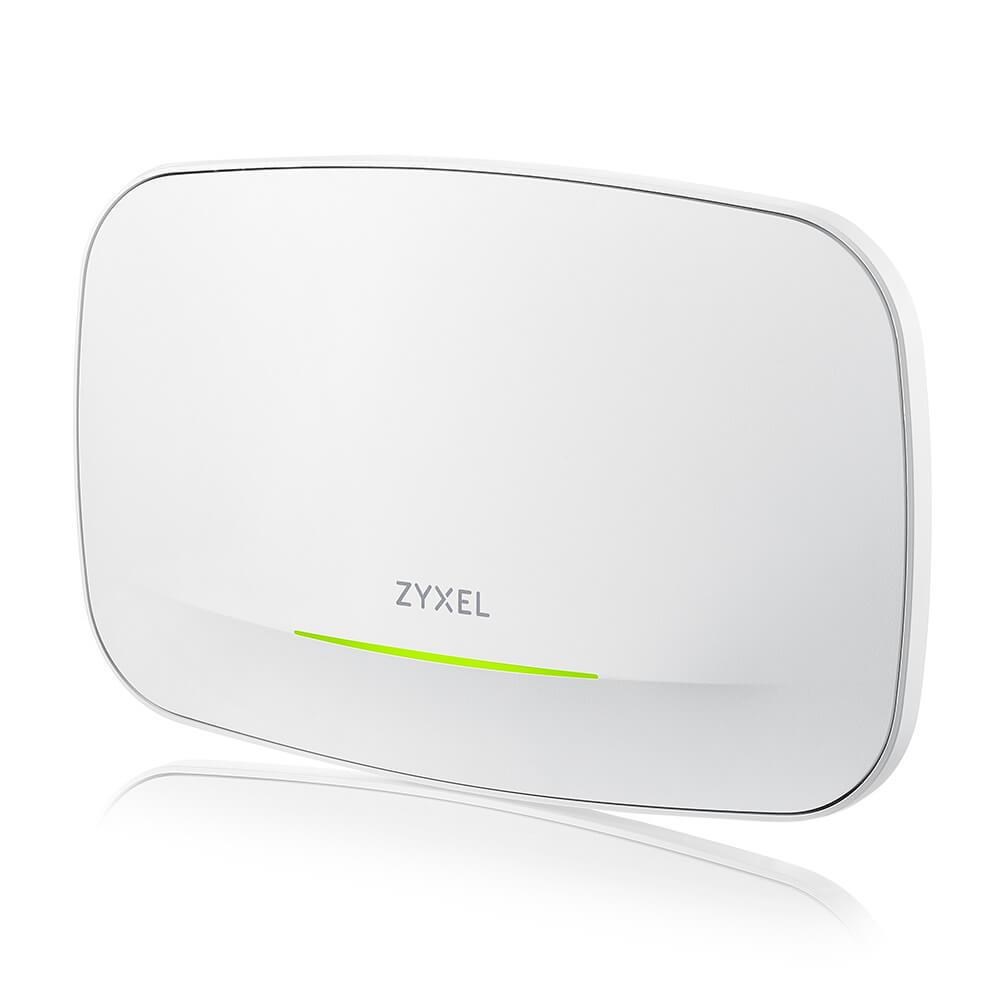

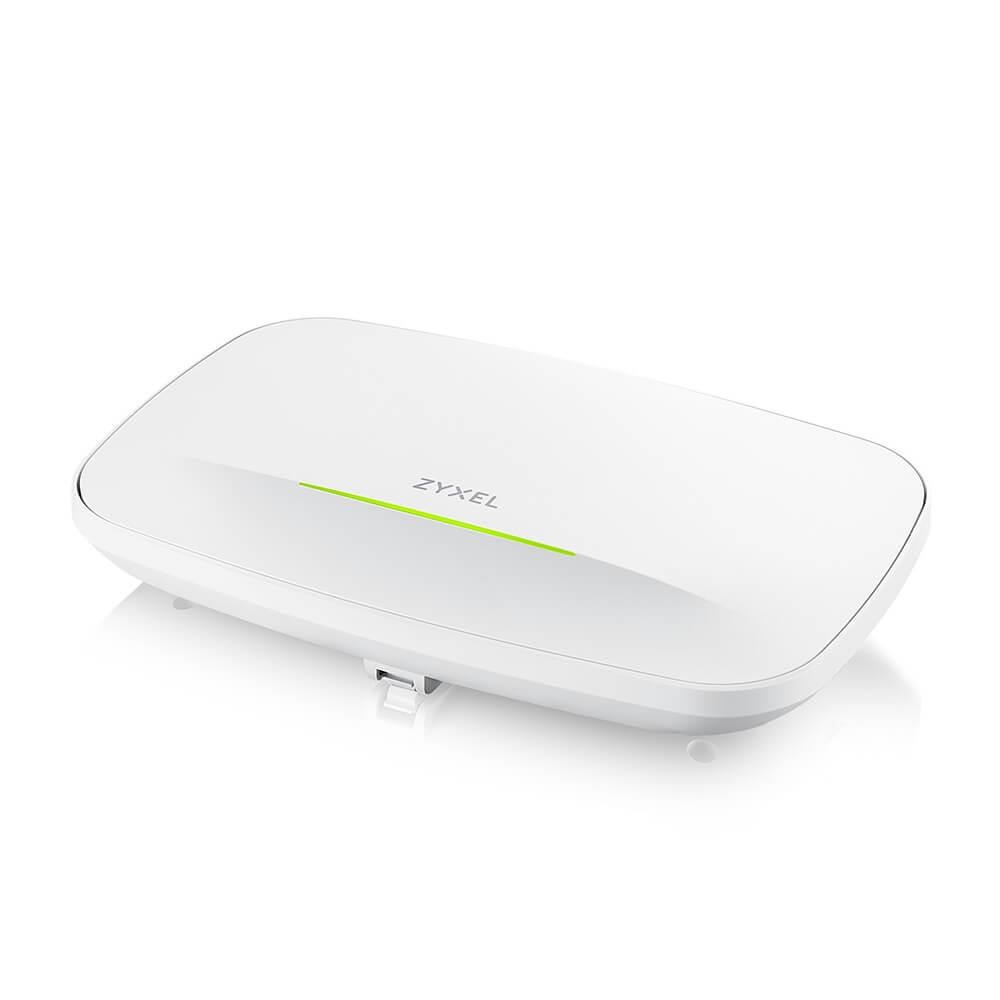

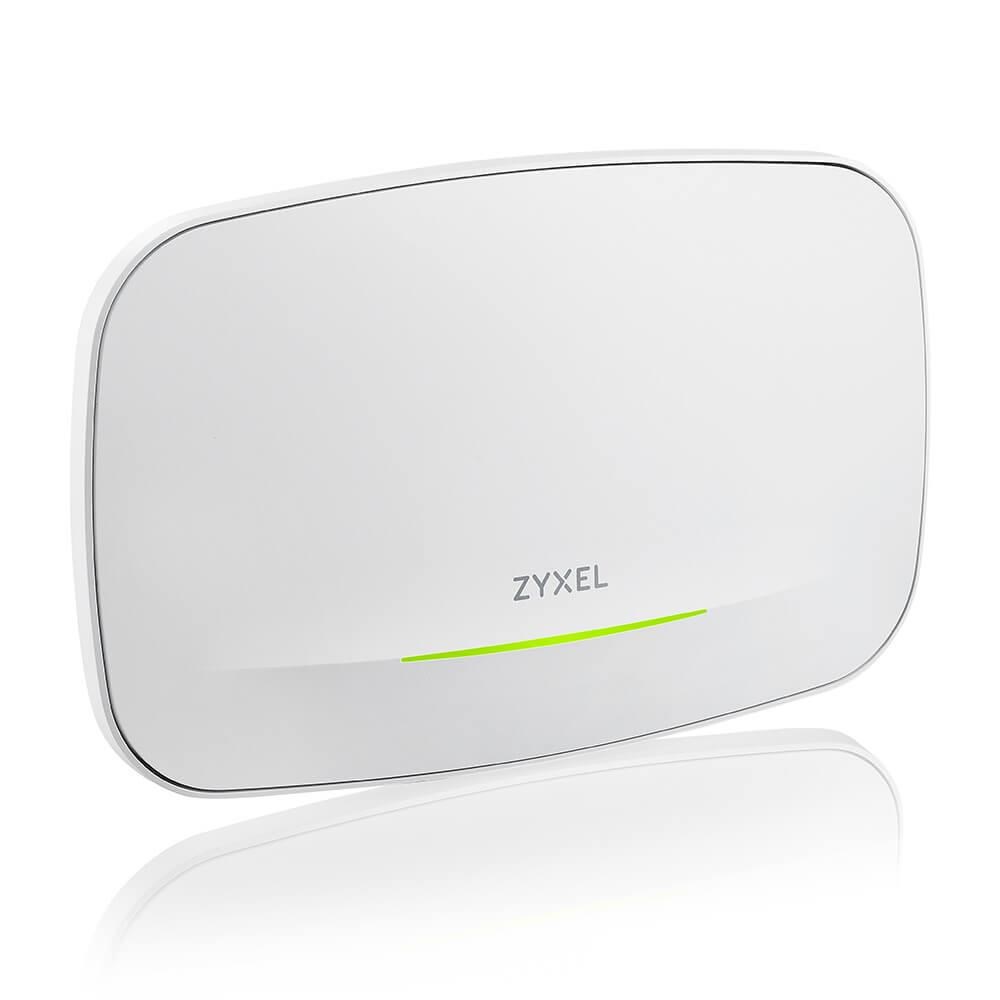

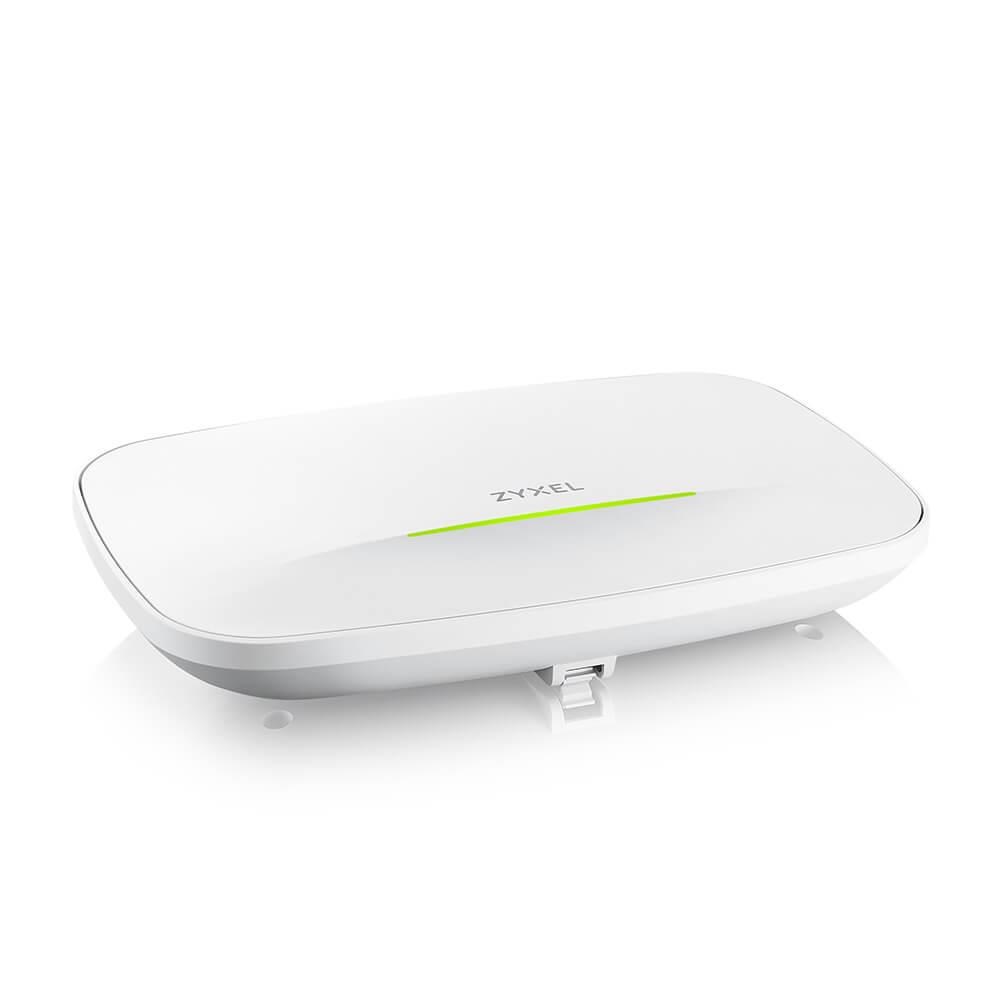

Zyxel NWA130BE, Single Pack 802.11be AP, 2x2 MU-MIMO, 2 x 2.5G LAN Ports, PoE+ (802.3at)

Wireless
Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4 GHz: 688 Mbps

5 GHz: 4324 Mbps

6 GHz: 5764 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz


5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz


6 GHz:

USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

European (ETSI): 5.925 to 6.425 GHz

Bandwidth

20-, 40- ,80-, 160- , 240- and 320-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz/6GHz):

27/25/23dBm


EU (2.4GHz/5GHz/6GHz):

19/25/21dBm

RF Design
Antenna type

Internal Antenna

Antenna gain

2.4 GHz:

3 dBi, 2X2:2SS


5 GHz:

4 dBi, 2X2:2SS


6 GHz:

4 dBi, 2X2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Feature
Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced cellular coexistence

Yes

Security
Encryption

WEP

WPA

WPA2-PSK

WPA3

Authentication

WPA

WPA2-Enterprise

EAP

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking
IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management
Operating mode

Cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

Yes

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.)
250 x 160 x 47/9.84 x 6.30 x 1.85

Weight (g/lb.)
808/1.79

Packing

Dimensions (WxDxH)(mm/in.)
279.5 x 180.5 x 66/11.00 x 7.11 x 2.60

Weight (g/lb.)
1032/2.28

Included accessories

Mount plate

Mounting screws

MTBF (hr)

698,312

Physical Interfaces

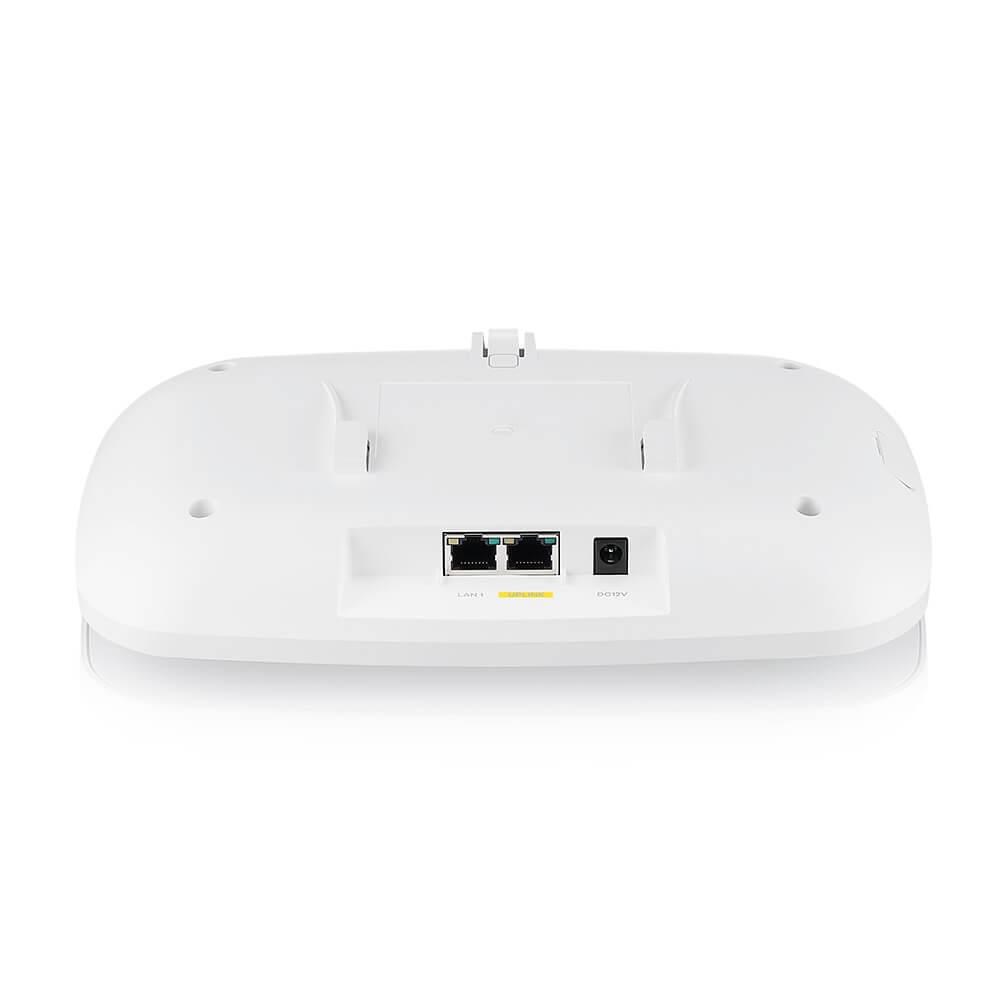

Ethernet port

2 x 1/2.5Gbps LAN

Power

PoE (802.3at): power draw 24 W

DC input : 12 VDC 2A

PoE modes

IEEE 802.3af: No Wireless

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications
Operating

Temperature
0°C to 50°C/32°F to 122°F

Humidity
10% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F

Humidity
10% to 90% (non-condensing)

Certifications
Radio

FCC Part 15C

FCC Part 15E

FCC Part 2.1091

ETSI EN 300 328

EN 301 893

Draft EN 303 687

EN 50385

EN 50665

EN IEC 62311,LP0002

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55032

EN55035

EN61000-3-2/-3

EN60601-1-2

BSMI CNS15936

Safety

EN 62368-1

IEC 62368-1

BSMI CNS15598-1

All specifications are subject to change without notice.

*1. Maximum transmit power is limited by local regulatory settings.
*2 WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.
